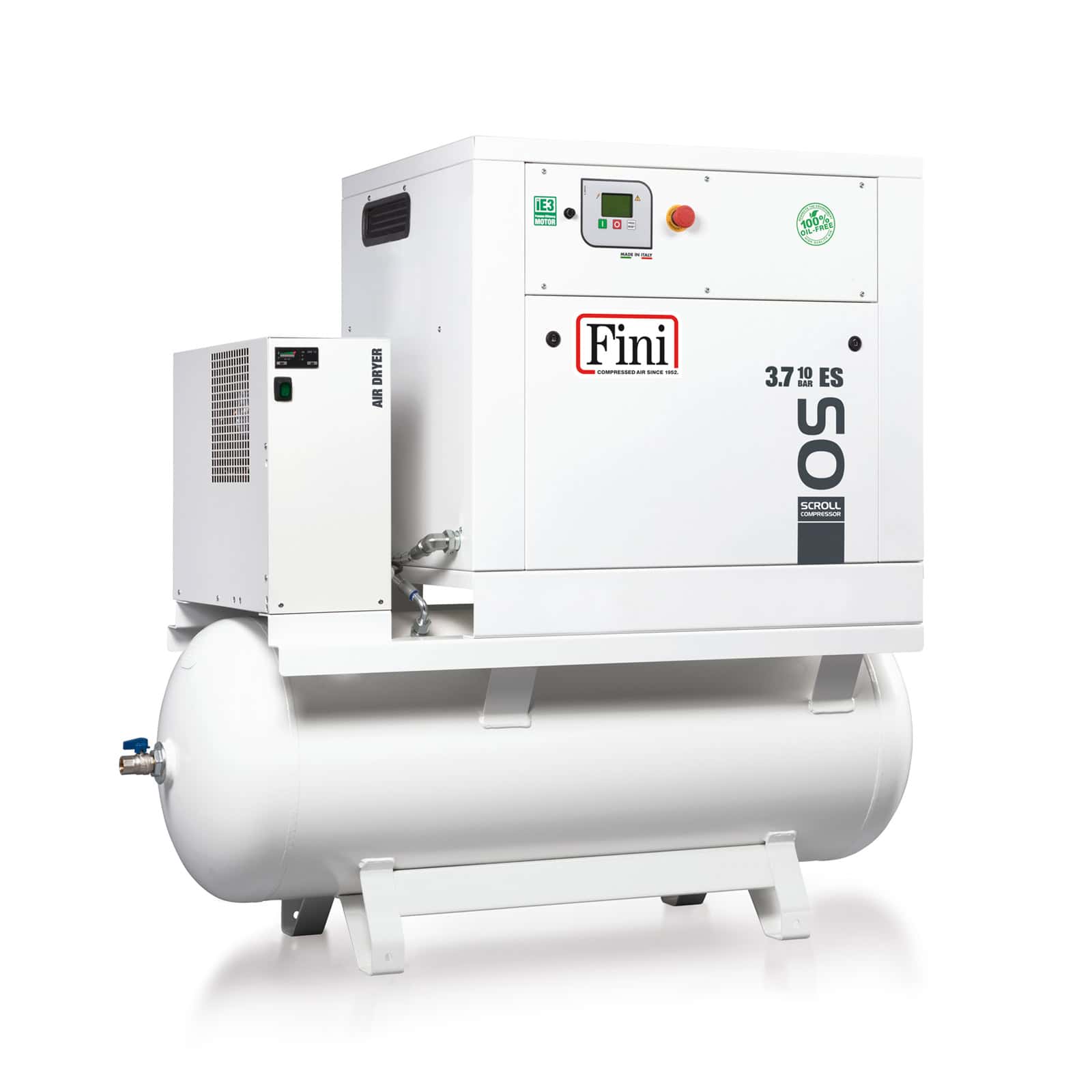

OS 3.7-08-270 ES
Oil-free compressor with spiral Scroll technology, complete with tank and dryer.

Single-scroll
Air dryer
SSC controller
Oilless

Single-pump oil-less scroll compressor and refrigerated dryer mounted on 270-litre tank with food-grade internal coating

lubrificazione fini
Lubrication
Oilless
aria-resa fini
Air outflow
420 l/min.
pressione-max fini
Max. pressure
8bar / 116psi
potenza fini
Power
3,7 kW
rumorosita fini
Sound level
Medium
*The images are for illustrative purposes only
OS 3.7-08-270 ES Oil-free compressor with spiral Scroll technology, complete with tank and dryer.
OS 3.7-08-270 ES Oil-free compressor with spiral Scroll technology, complete with tank and dryer. dettaglio
OS 3.7-08-270 ES Oil-free compressor with spiral Scroll technology, complete with tank and dryer. altre applicazioni

Technical data

OS 3.7-08-270 ES
Product code
VW3SB92FNM621
Lubrication
Oilless
Air receiver (l)
270
Power (kW)
3,7
Air outflow
l/min.
m3/min.
c.f.m.
420
0,42
14,8
Max. pressure
bar
p.s.i.
8
116
Sound level (dB(A))
*
62
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
SSC
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
280
Net weight (kg)
250
Packaging dimensions LxWxH (mm)
1760x750x1680
Net Dimensions LxWxH (mm)
1572x600x1459
*Sound pressure level measurement carried out at a distance of 7 metres.
