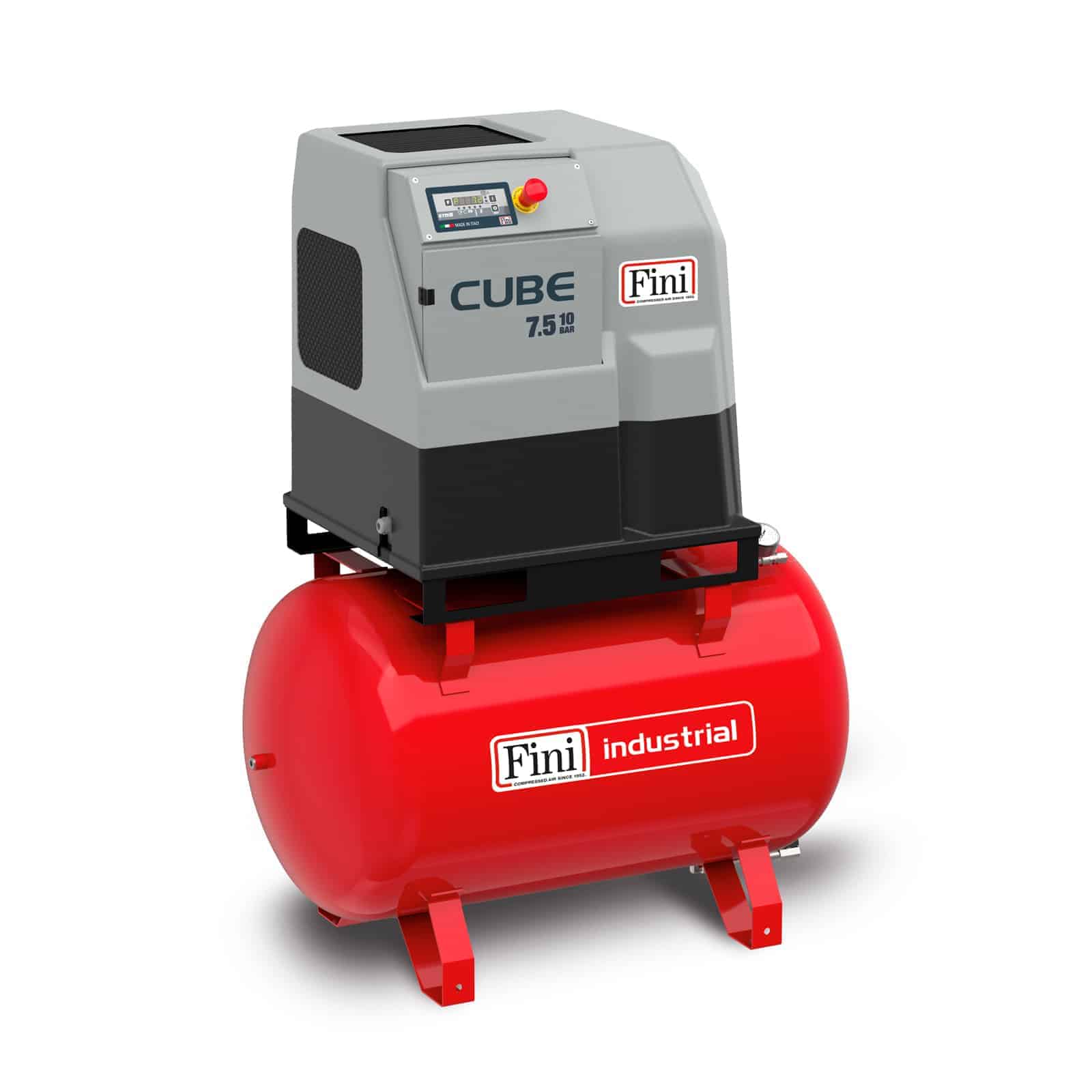

CUBE 7.5-10-270
Compact, direct drive transmission screw compressor, complete with tank.

ETMII controller

Three-phase lubricated screw compressor with coaxial transmission for efficiency and reliability. Particularly compact and easy to install and maintain complete with 270 litre storage tank

lubrificazione fini
Lubrication
Lubricated
aria-resa fini
Air outflow
1,050 l/min.
pressione-max fini
Max. pressure
10bar / 145psi
potenza fini
Power
7,5 kW
CUBE 7.5-10-270 Compact, direct drive transmission screw compressor, complete with tank.
CUBE 7.5-10-270 Compact, direct drive transmission screw compressor, complete with tank. dettaglio
CUBE 7.5-10-270 Compact, direct drive transmission screw compressor, complete with tank. altre applicazioni

Video

Technical data

CUBE 7.5-10-270
Product code
V91PO92FNM201
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
270
Power (kW)
7,5
Air outflow
l/min.
m3/min.
c.f.m.
1,050
1,05
37
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
67
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1/2"
Controller
ETMII
Type motor
Electric
Gross weight (kg)
222
Net weight (kg)
194
Packaging dimensions LxWxH (mm)
1320 x 850 x 1720
Net Dimensions LxWxH (mm)
1200 x 600 x 1450
*Sound pressure level measurement carried out at a distance of 7 metres.
