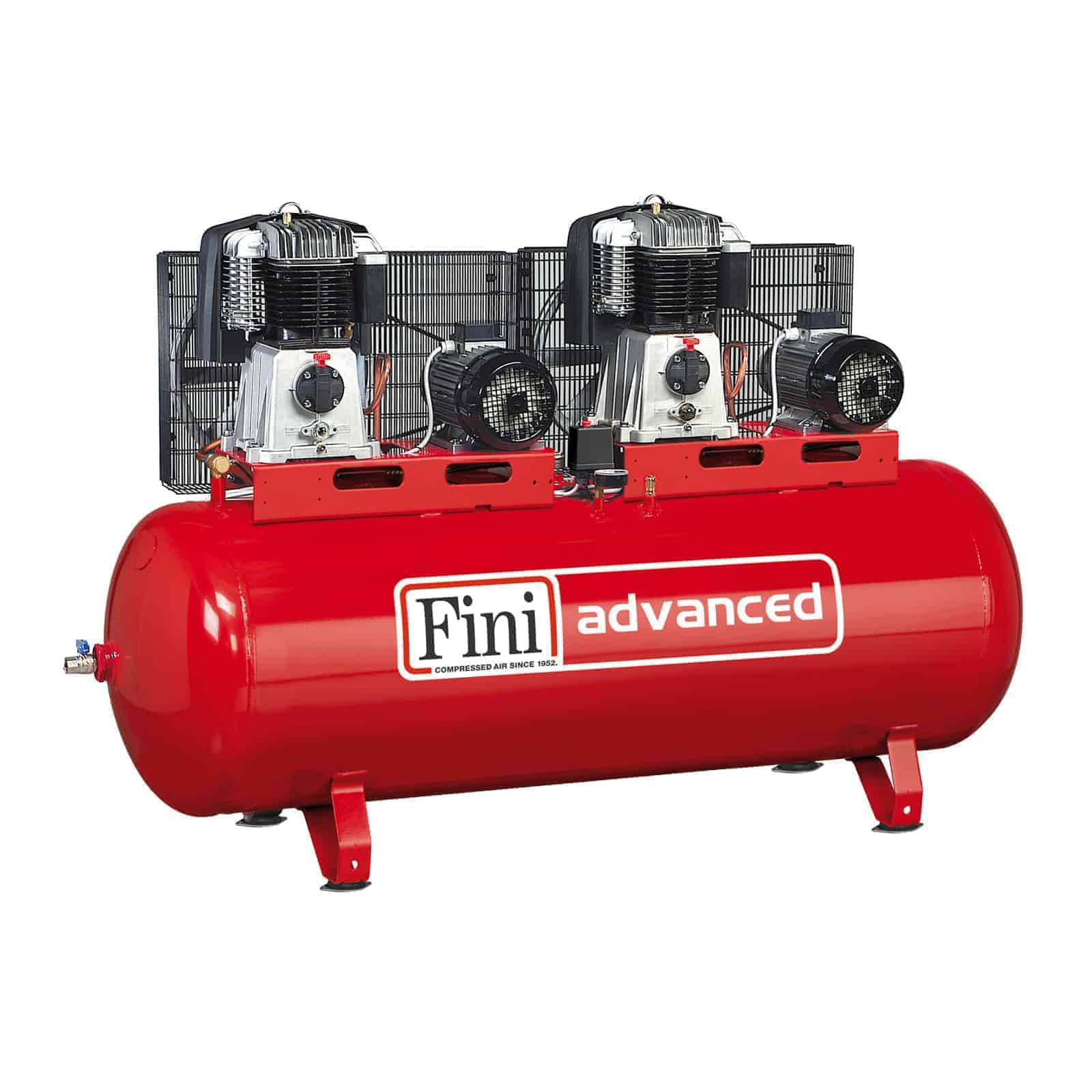

BKT119-500F-15T
Tandem belt driven two-stage compressor that guarantees very high performance.

2 pumping units
Fixed
Large air supply

Two-stage three-phase Tandem belt compressor with star delta starter suitable for high performance by professionals due to higher air intake and higher volumetric efficiency. It is equipped with two highly efficient 7.5 hp pumping units with cast iron cylinders with large manifolds and finned tubes for better air cooling and robust metal belt covers protecting moving parts. The 500-litre tank for a large air reserve with four sturdy support feet with vibration dampers make it stable in use.

plus fini
Read more
lubrificazione fini
Lubrication
Lubricated
serbatoio fini
Air receiver
500 l
pressione-max fini
Max. pressure
10 bar
potenza fini
Power
15 Hp
rumorosita fini
Sound level
Medium
allestimento fini
Equipment
Resting feet
BKT119-500F-15T Tandem belt driven two-stage compressor that guarantees very high performance.

Technical data

BKT119-500F-15T
Product code
BRUN801FNM842
Lubrication
Lubricated
Compressor pump
2-BK119
Air receiver (l)
500
Power
Hp
kW
15
11
Max. pressure
bar
p.s.i.
10
145
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
1720
60,7
R.P.M.
1250
Voltage / Frequency (Volt / Hz)
400/50
Type motor
Electric
Gross weight
kg
lb
319
703,2
Packaging dimensions LxWxH (mm)
2010x650x1330
EAN code
8017750189154

Download

catalogo fini
Catalogue
download fini download fini
dati tecnici fini
Technical data
download fini download fini
