PLUS 8-08-500

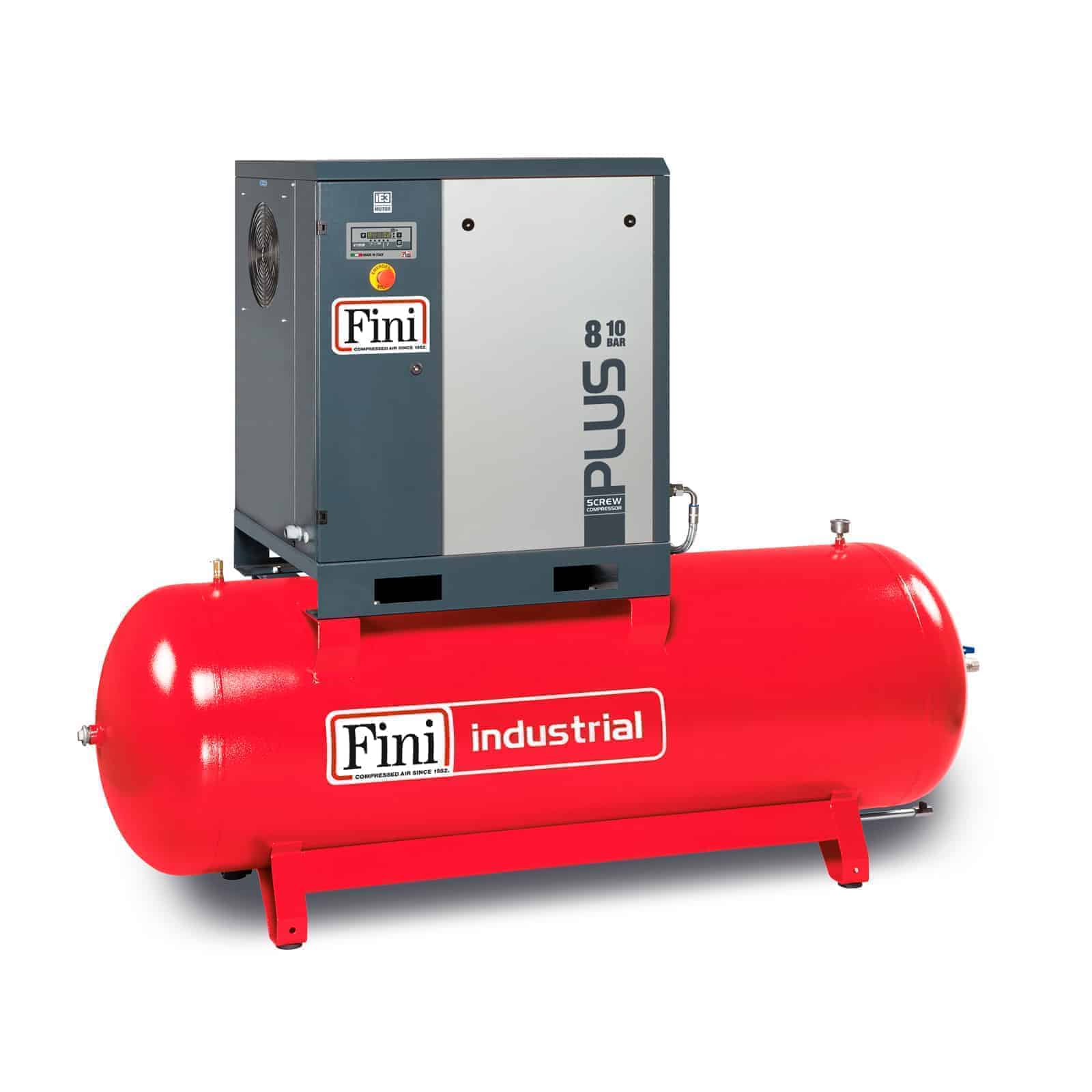

Screw compressor with belt transmission, complete with tank.

ETMII controller
IE3

Lubricated screw compressor with belt transmission, ETMII electronic controller. Soundproof cab made of hot-painted sheet metal to ensure maximum silence, complete with 500-litre tank

lubrificazione fini
Lubrication
Lubricated
aria-resa fini
Air outflow
1250 l/min.
pressione-max fini
Max. pressure
8bar / 116psi
potenza fini
Power
7,5 kW
PLUS 8-08-500 Screw compressor with belt transmission, complete with tank.
PLUS 8-08-500 Screw compressor with belt transmission, complete with tank. dettaglio

Technical data

PLUS 8-08-500
Product code
V83NG92FNM701
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
500
Power (kW)
7,5
Air outflow
l/min.
m3/min.
c.f.m.
1250
1,25
44
Max. pressure
bar
p.s.i.
8
116
Nr. of stages
1
Sound level (dB(A))
*
68
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
ETMII
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
374
Net weight (kg)
334
Packaging dimensions LxWxH (mm)
2070x800x1850
Net Dimensions LxWxH (mm)
2000x680x1630
*Sound pressure level measurement carried out at a distance of 7 metres.
