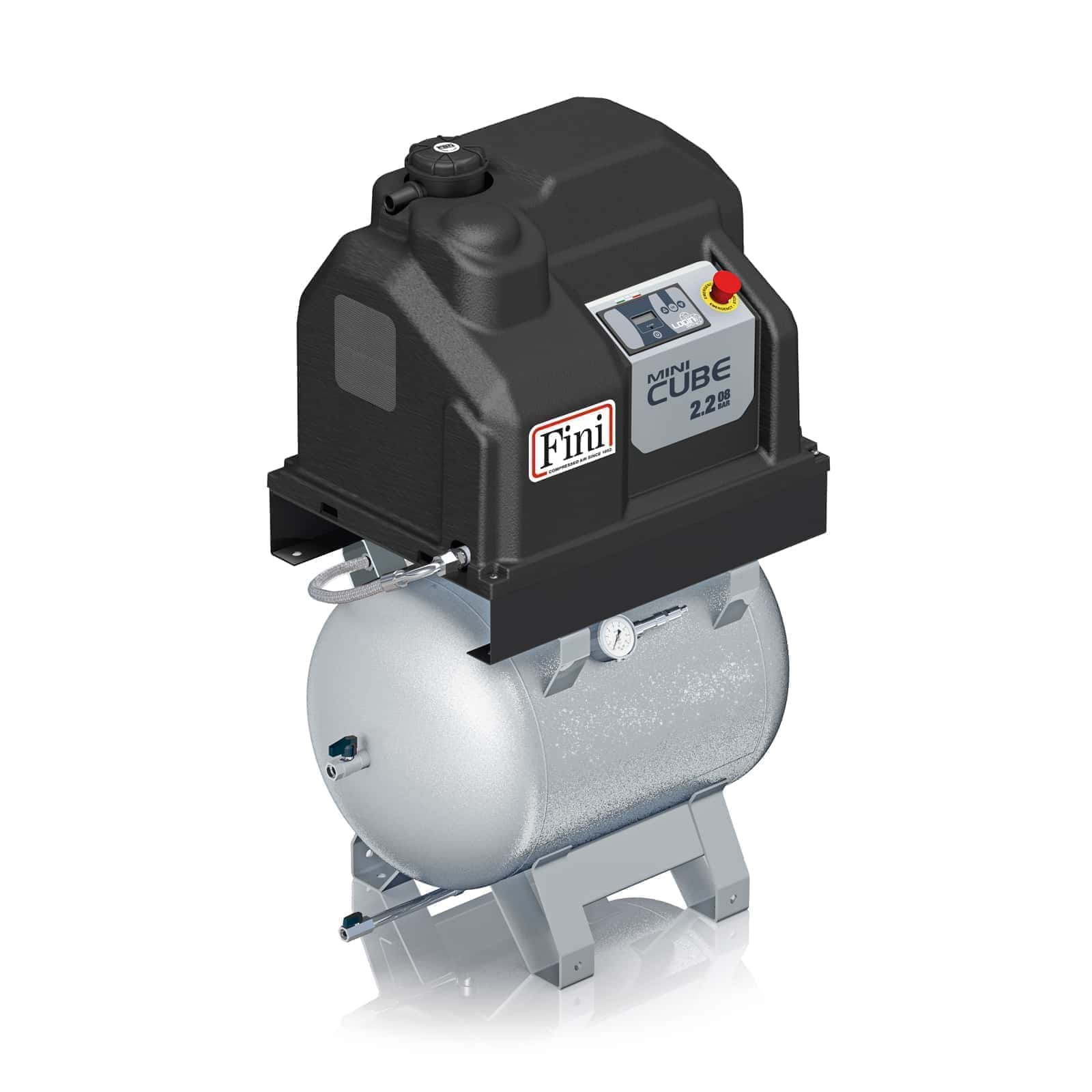

MiniCUBE 2.2-10-90z
The smallest and most compact direct drive transmission screw compressor, complete with tank.

LOGIN Zero Controller
Galvanized tank
IE3

Three-phase lubricated, direct-start coaxial screw compressor, the smallest in the entire FINI range. Compact and quiet mounted on 90 litre galvanised tank. Optional equipment: anti-condensation heater.

plus fini
Read more
lubrificazione fini
Lubrication
Lubricated
aria-resa fini
Air outflow
260,64 l/min.
pressione-max fini
Max. pressure
10bar / 145psi
potenza fini
Power
2,2 kW
*The images are for illustrative purposes only
MiniCUBE 2.2-10-90z The smallest and most compact direct drive transmission screw compressor, complete with tank.
MiniCUBE 2.2-10-90z The smallest and most compact direct drive transmission screw compressor, complete with tank. dettaglio

Technical data

MiniCUBE 2.2-10-90z
Product code
V72PK72FNMZ01
Lubrication
Lubricated
Air-end
FS14
Air receiver (l)
90 z
Power (kW)
2,2
Air outflow
l/min.
m3/min.
c.f.m.
260,64
0,26
9
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
65
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1/2"
Controller
LoginZERO
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
116
Net weight (kg)
104
Packaging dimensions LxWxH (mm)
840 x 540 x 1340
Net Dimensions LxWxH (mm)
750 x 465 x 1144
*Sound pressure level measurement carried out at a distance of 7 metres.
