K-MAX 7.5-13-270 VS
Screw compressor with direct drive transmission, complete with tank.

High pressure
Variable speed
LOGIN Controller

Lubricated screw compressor with coaxial transmission and inverter speed control. LOGIN electronic controller. Compact and quiet mounted on 270-litre tank

lubrificazione fini
Lubrication
Lubricated
aria-resa fini
Air outflow
207 - 621 l/min.
pressione-max fini
Max. pressure
13bar / 189psi
potenza fini
Power
7,5 kW
*The images are for illustrative purposes only

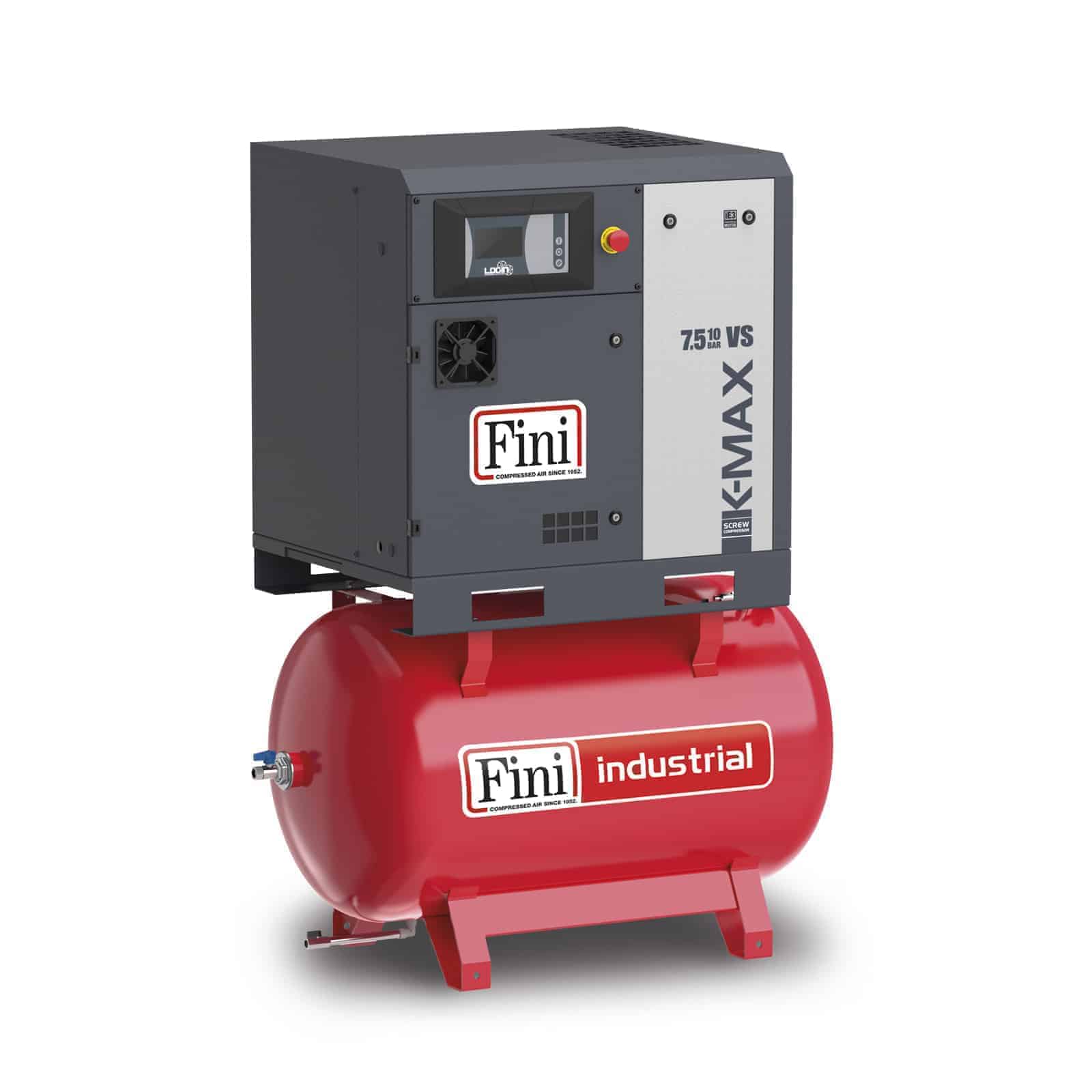

K-MAX 7.5-13-270 VS Screw compressor with direct drive transmission, complete with tank.
K-MAX 7.5-13-270 VS Screw compressor with direct drive transmission, complete with tank. dettaglio

Video

Technical data

K-MAX 7.5-13-270 VS
Product code
V91PY97FNMA01
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
270
Power (kW)
7,5
Air outflow
l/min.
m3/min.
c.f.m.
207 - 621
0,21 - 0,62
7 - 22
Max. pressure
bar
p.s.i.
13
189
Nr. of stages
1
Sound level (dB(A))
*
63
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1/2"
Controller
Login
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
278
Net weight (kg)
273
Packaging dimensions LxWxH (mm)
1320 x 850 x 1720
Net Dimensions LxWxH (mm)
1200 x 680 x 1540
*Sound pressure level measurement carried out at a distance of 7 metres.
