K-MAX 5.5-10
Screw compressor with direct drive transmission.

IE4
LOGIN Controller

Lubricated screw compressor with coaxial transmission. Modern and versatile LOGIN electronic controller. Compact and quiet

lubrificazione fini
Lubrication
Lubricated
aria-resa fini
Air outflow
710 l/min.
pressione-max fini
Max. pressure
10bar / 145psi
potenza fini
Power
5,5 kW

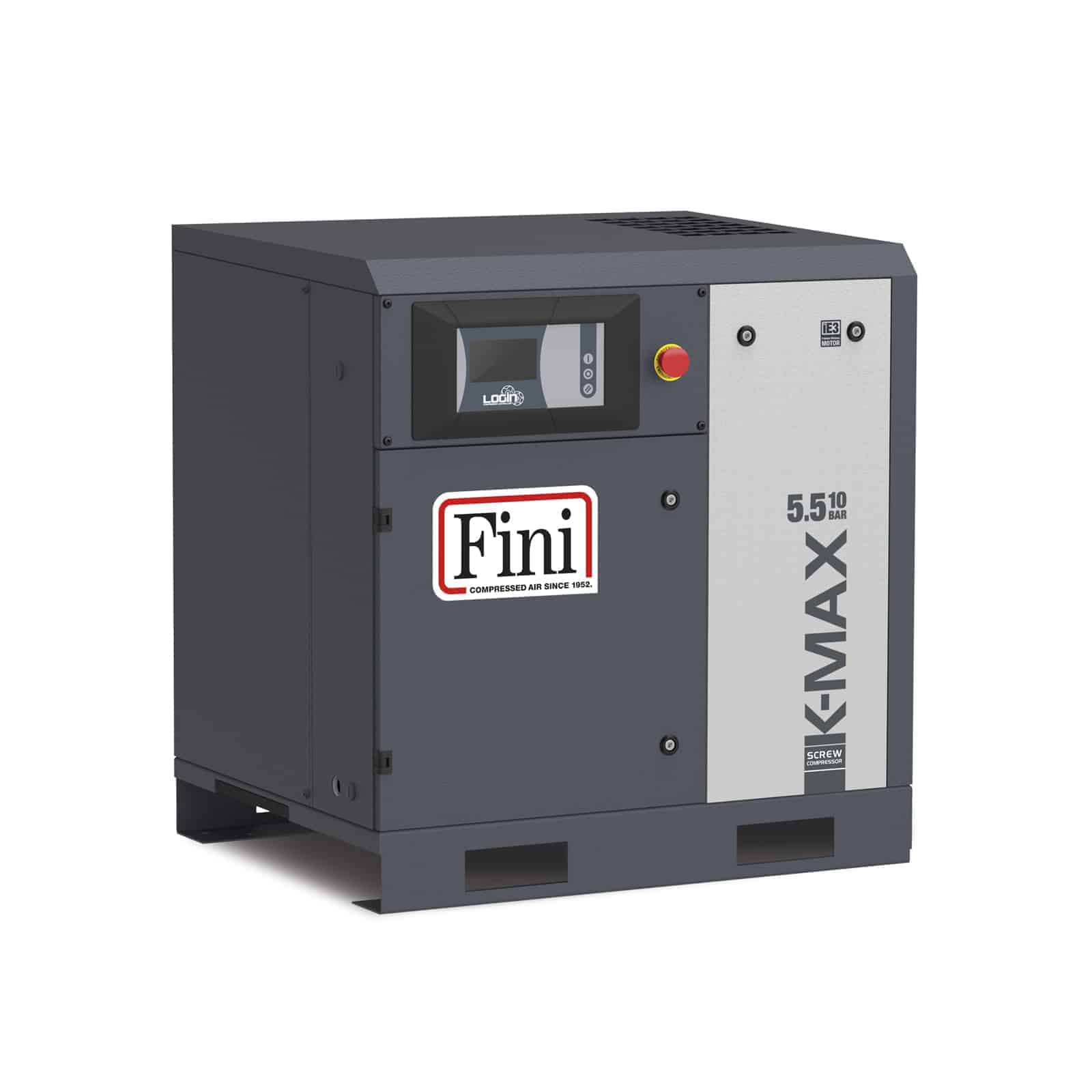

K-MAX 5.5-10 Screw compressor with direct drive transmission.
K-MAX 5.5-10 Screw compressor with direct drive transmission. dettaglio

Video

Technical data

K-MAX 5.5-10
Product code
V51PS92FNMA60
Lubrication
Lubricated
Air-end
FS26
Power (kW)
5,5
Air outflow
l/min.
m3/min.
c.f.m.
710
0,71
25
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
62
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1/2"
Controller
Login
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
176
Net weight (kg)
162
Packaging dimensions LxWxH (mm)
940 x 770 x 1030
Net Dimensions LxWxH (mm)
830 x 680 x 850
*Sound pressure level measurement carried out at a distance of 7 metres.
