K-MAX 15-13
Screw compressor with direct drive transmission.

High pressure
IE4
LOGIN Controller

Lubricated screw compressor with coaxial transmission. Modern and versatile LOGIN electronic controller. Compact and quiet

lubrificazione fini
Lubrication
Lubricated
aria-resa fini
Air outflow
1550 l/min.
pressione-max fini
Max. pressure
13bar / 189psi
potenza fini
Power
15 kW

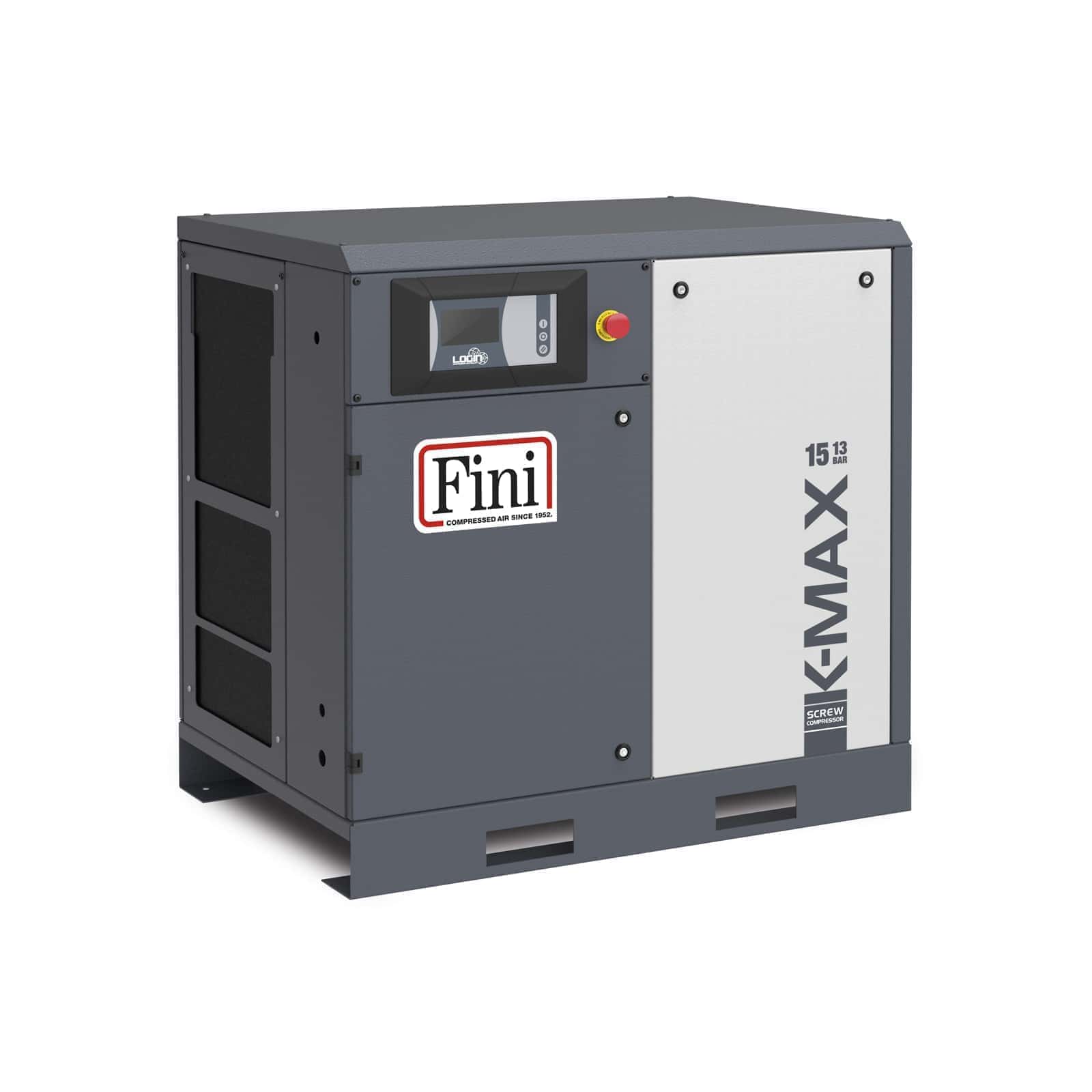

K-MAX 15-13 Screw compressor with direct drive transmission.
K-MAX 15-13 Screw compressor with direct drive transmission. dettaglio
K-MAX 15-13 Screw compressor with direct drive transmission. altre applicazioni

Video

Technical data

K-MAX 15-13
Product code
V60PX92FNMA60
Lubrication
Lubricated
Air-end
FS50
Power (kW)
15
Air outflow
l/min.
m3/min.
c.f.m.
1550
1,55
55
Max. pressure
bar
p.s.i.
13
189
Nr. of stages
1
Sound level (dB(A))
*
67
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
Login
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
309
Net weight (kg)
248
Packaging dimensions LxWxH (mm)
1240 x 850 x 1190
Net Dimensions LxWxH (mm)
1030 x 730 x 1000
*Sound pressure level measurement carried out at a distance of 7 metres.
