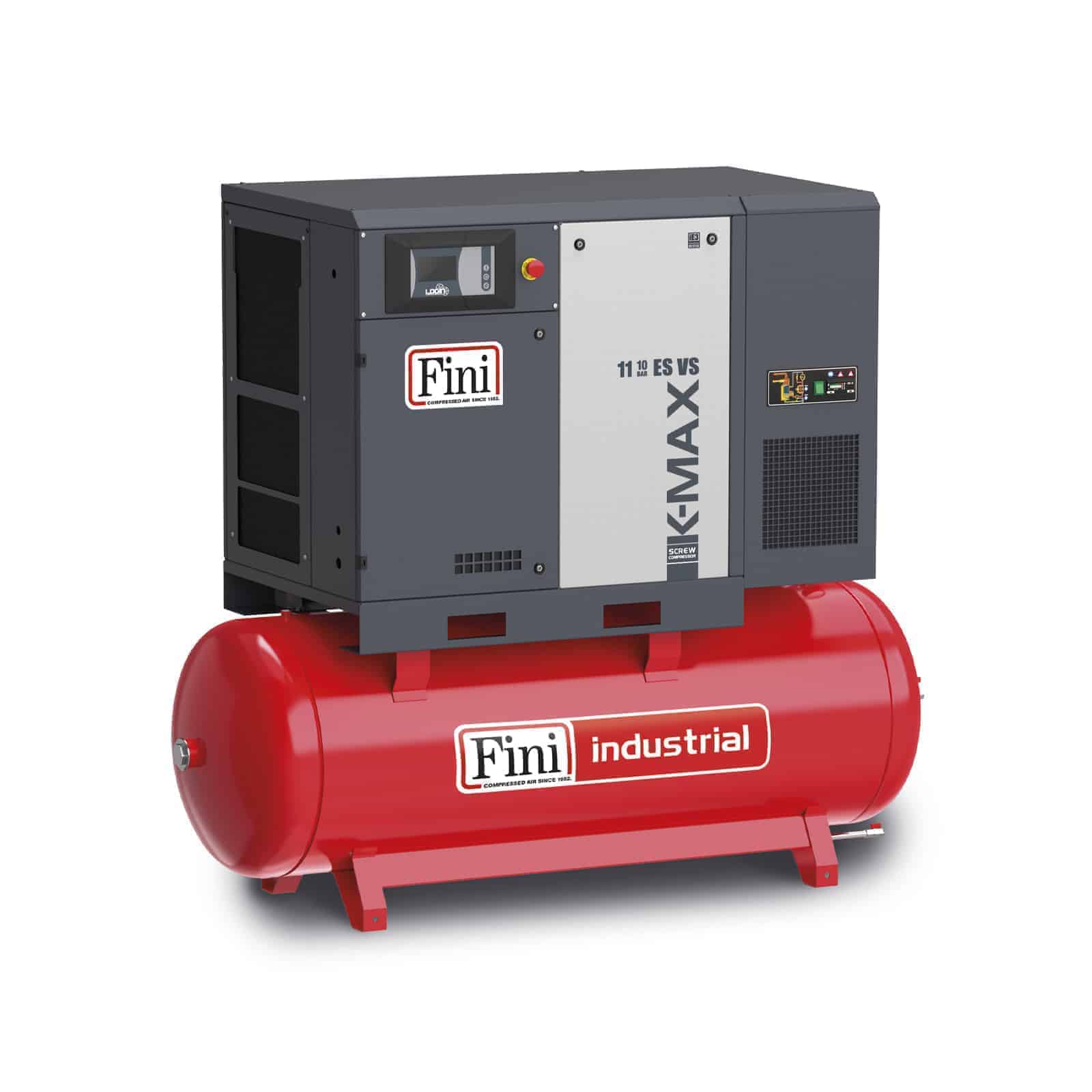

K-MAX 11-10-500 ES VS
Screw compressor with direct drive transmission, complete with tank and dryer.

Air dryer
Variable speed
LOGIN Controller

Lubricated screw compressor with coaxial transmission and inverter speed control. LOGIN electronic controller. Complete with integrated dryer and mounted on 500-litre tank

lubrificazione fini
Lubrication
Lubricated
aria-resa fini
Air outflow
620 - 1580 l/min.
pressione-max fini
Max. pressure
10bar / 145psi
potenza fini
Power
11 kW
K-MAX 11-10-500 ES VS Screw compressor with direct drive transmission, complete with tank and dryer.
K-MAX 11-10-500 ES VS Screw compressor with direct drive transmission, complete with tank and dryer. dettaglio
K-MAX 11-10-500 ES VS Screw compressor with direct drive transmission, complete with tank and dryer. altre applicazioni

Video

Technical data

K-MAX 11-10-500 ES VS
Product code
V83PJ97FNMB01
Lubrication
Lubricated
Air-end
FS50
Air receiver (l)
500
Power (kW)
11
Air outflow
l/min.
m3/min.
c.f.m.
620 - 1580
0,62 - 1,58
22 - 56
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
67
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
Login
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
460
Net weight (kg)
420
Packaging dimensions LxWxH (mm)
2065 x 800 x 1850
Net Dimensions LxWxH (mm)
2000 x 730 x 1660
*Sound pressure level measurement carried out at a distance of 7 metres.
