Dr.Sonic 320-50V-ES-3M
MedicAir oilless compressor, designed for dentists and laboratories.

Very quiet
4 dental chairs
Air dryer
Oilless

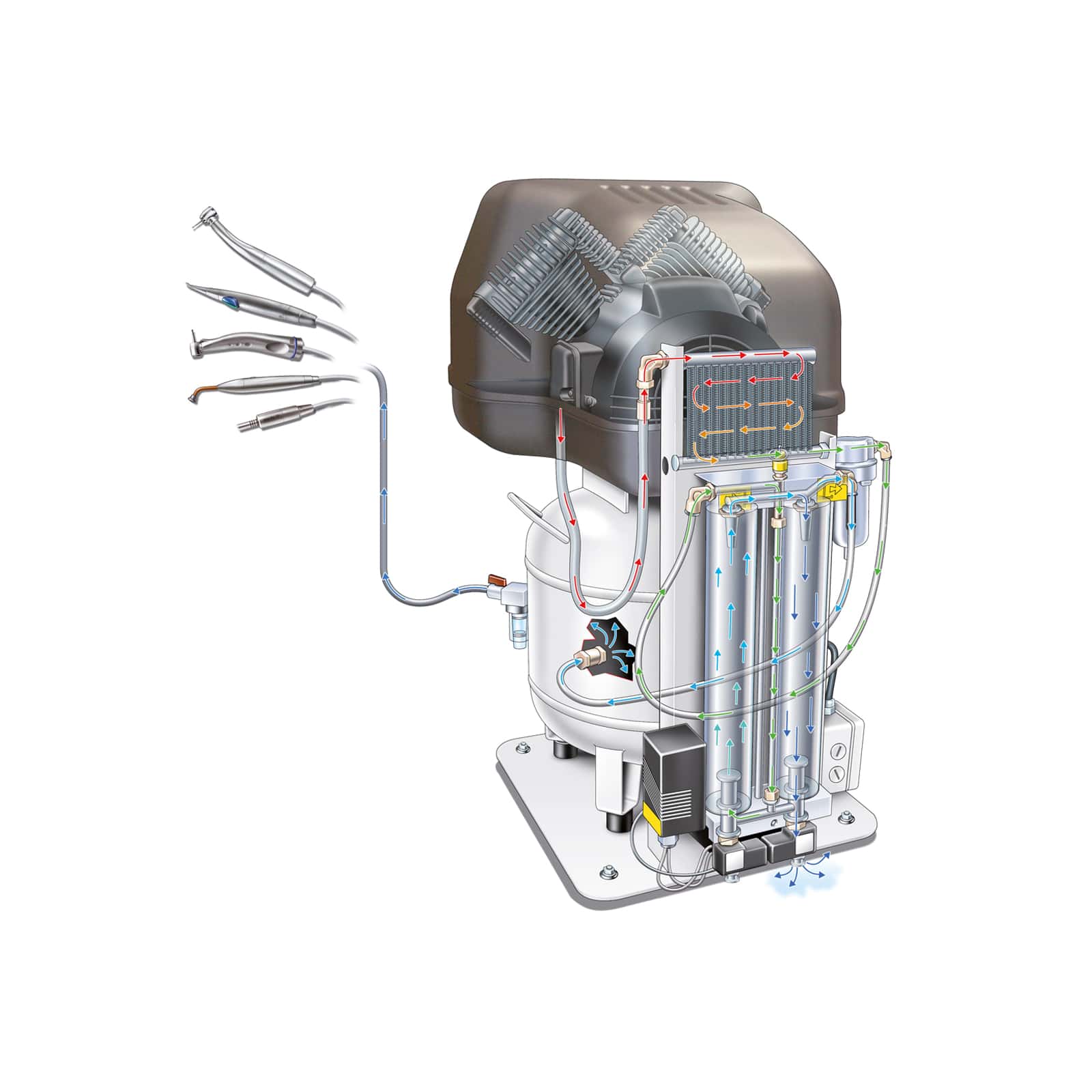

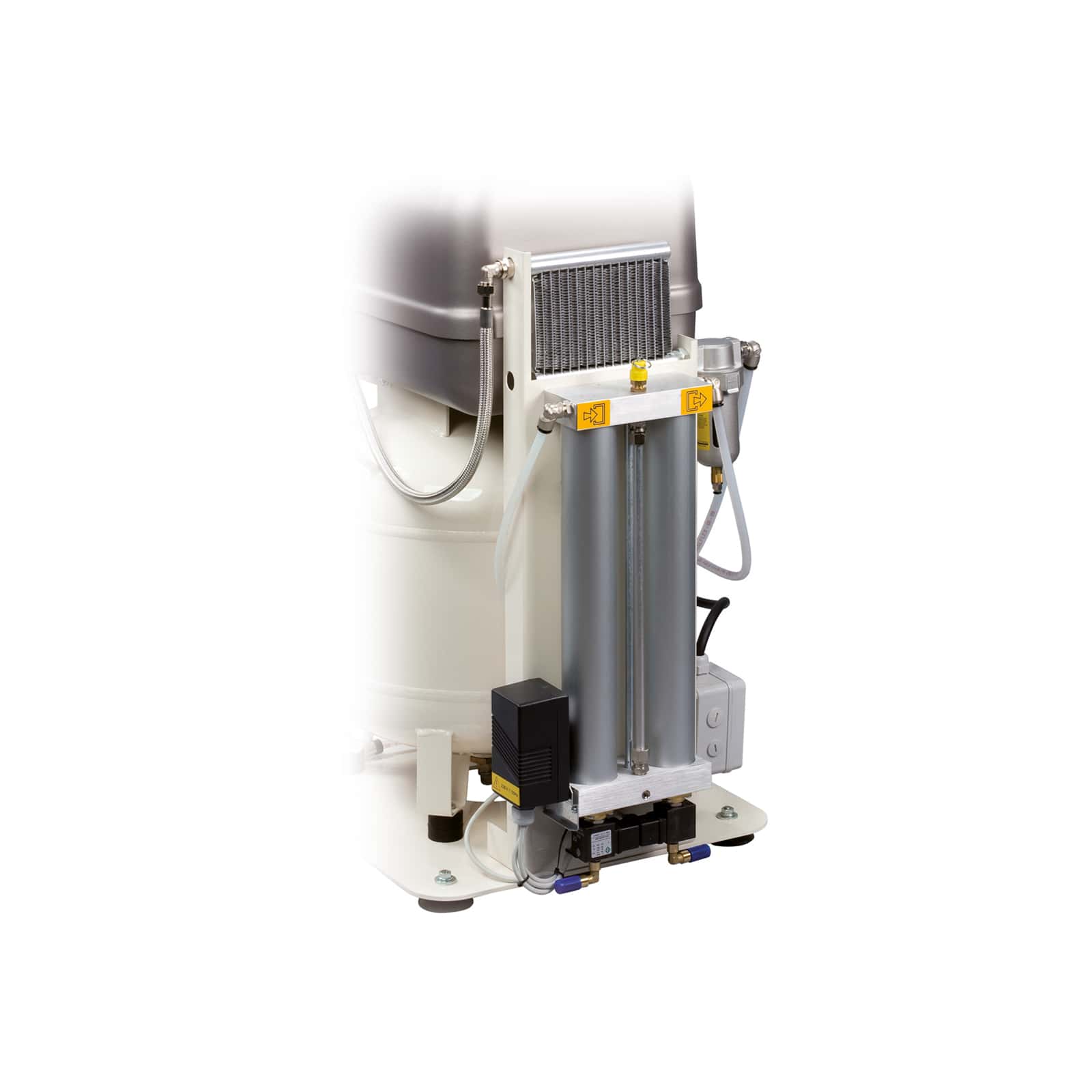

Compressor designed for the dental and dentistry sector, as the compressed air produced is oil-free thanks to oil-free compression, condensate-free thanks to the dryer and odourless thanks to the internal treatment of the storage tank. Ideal for 3/4 dental units, it is equipped with a powerful and reliable 3 hp ā€˜Vā€™ pumping unit with soundproof cover, a dual-column dryer and a compact, space-saving 50 litre tank that is also internally coated to prevent oxidation, with a double handle for easy handling.

plus fini
Read more
lubrificazione fini
Lubrication
Oilless
serbatoio fini
Air receiver
50 l
pressione-max fini
Max. pressure
8 bar
potenza fini
Power
3 Hp
rumorosita fini
Sound level
Low
allestimento fini
Equipment
Resting feet
Dr.Sonic 320-50V-ES-3M MedicAir oilless compressor, designed for dentists and laboratories.
Dr.Sonic 320-50V-ES-3M MedicAir oilless compressor, designed for dentists and laboratories. dettaglio
Dr.Sonic 320-50V-ES-3M MedicAir oilless compressor, designed for dentists and laboratories. altre applicazioni

Technical data

Dr.Sonic 320-50V-ES-3M
Product code
FVDV504FNM459
Lubrication
Oilless
Compressor pump
VKM320
Air receiver (l)
50
Power
Hp
kW
3
2,2
Max. pressure
bar
p.s.i.
8
116
Sound level (dB(A))
*
60
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
210
12,5
R.P.M.
1400
Voltage / Frequency (Volt / Hz)
230/50
Type motor
Electric
Gross weight
kg
lb
89
194
Packaging dimensions LxWxH (mm)
700x500x950
EAN code
8017750221151
*Sound pressure level measurement carried out at a distance of 7 metres.
