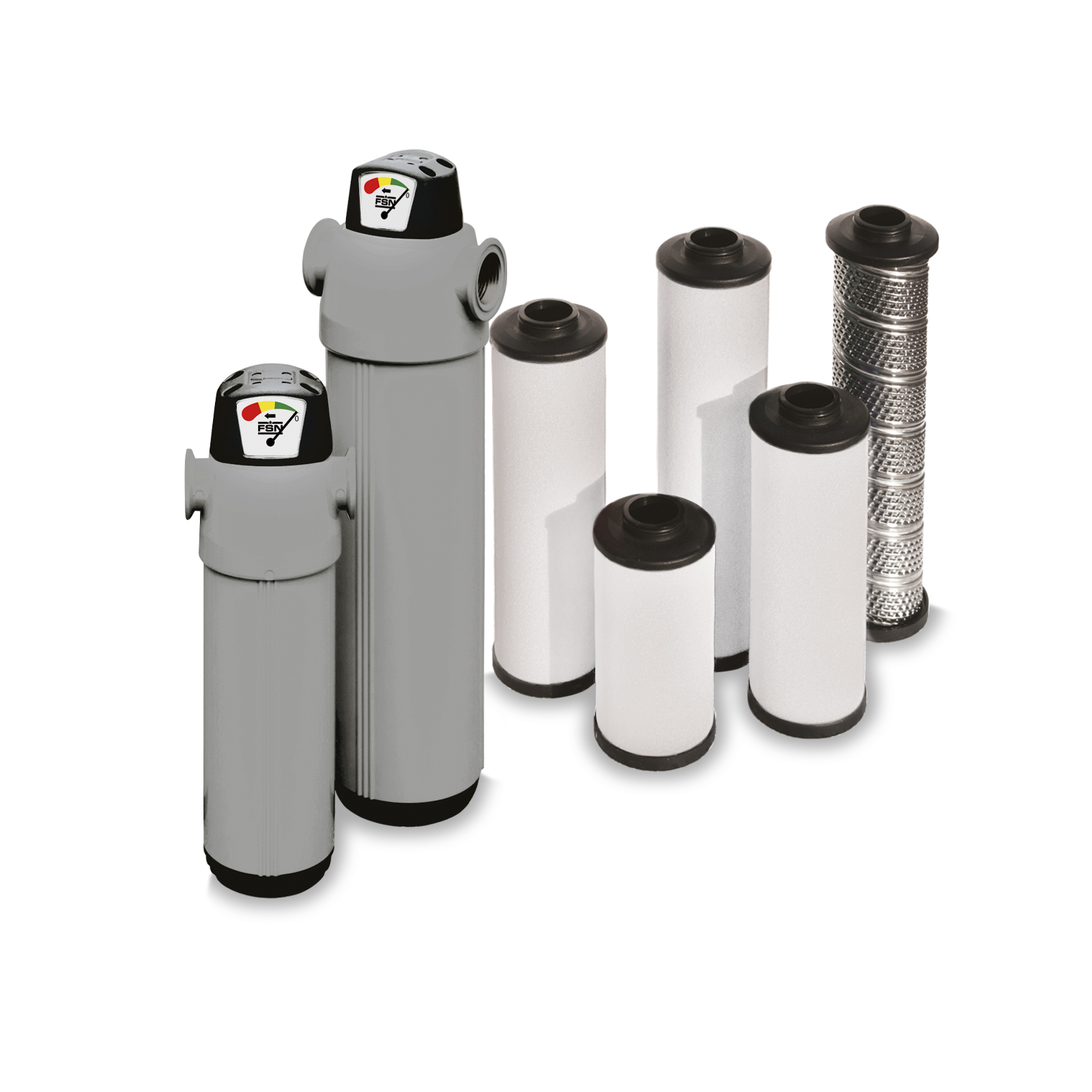

Filters
The correct choice of filters avoids problems caused by the presence of oil or impurities in the air.
Our filters ensure clean compressed air for even the most demanding applications.

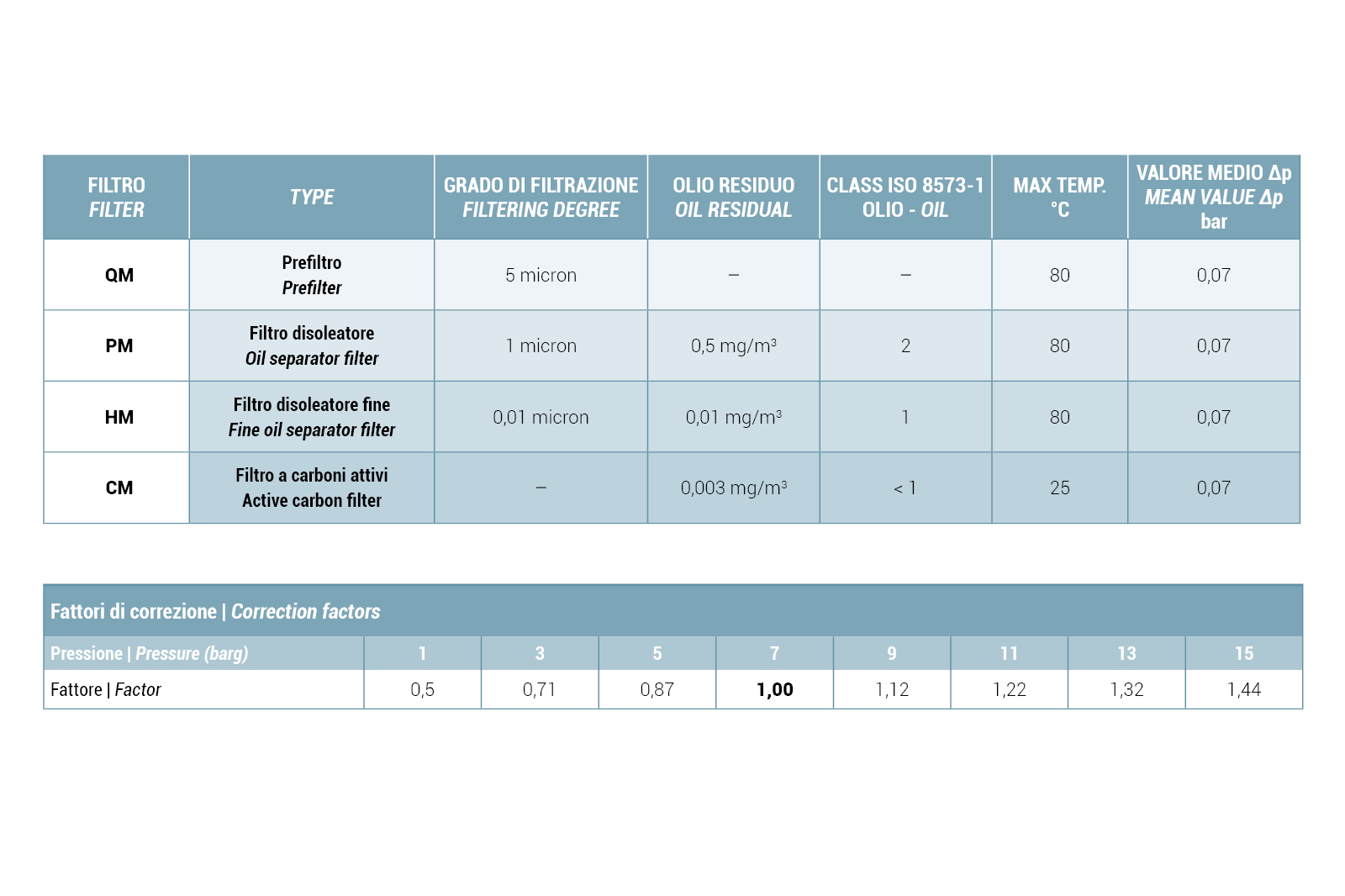

The filters have 4 degrees of filtration, and are capable of separating particles down to 0.01 micron at a pressure of 16 bar, with connections from 1/4″ to 3″ NPT/G.
The filters are equipped with: – Integrated clogging pressure gauge (excluding CM models). – Internal anodising treatment for perfect corrosion resistance. – Built-in automatic condensate drain. – Large diameter filter elements for better separation.
Depending on the type of use, there are prefilters for dust removal, oil filters and activated carbon filters for removing oil vapours and odours. The entire range is characterised by low pressure drop and high service life.
The filters are complete with an automatic float condensate drain, but it is also possible to install electronically controlled level drains. The different combinations are designed to meet the demands of different applications.
The filters meet the current international PED and ISO 8573 standards.
